4AGE 20V Alternator
4AGE 20V Alternator
Couldn't load pickup availability

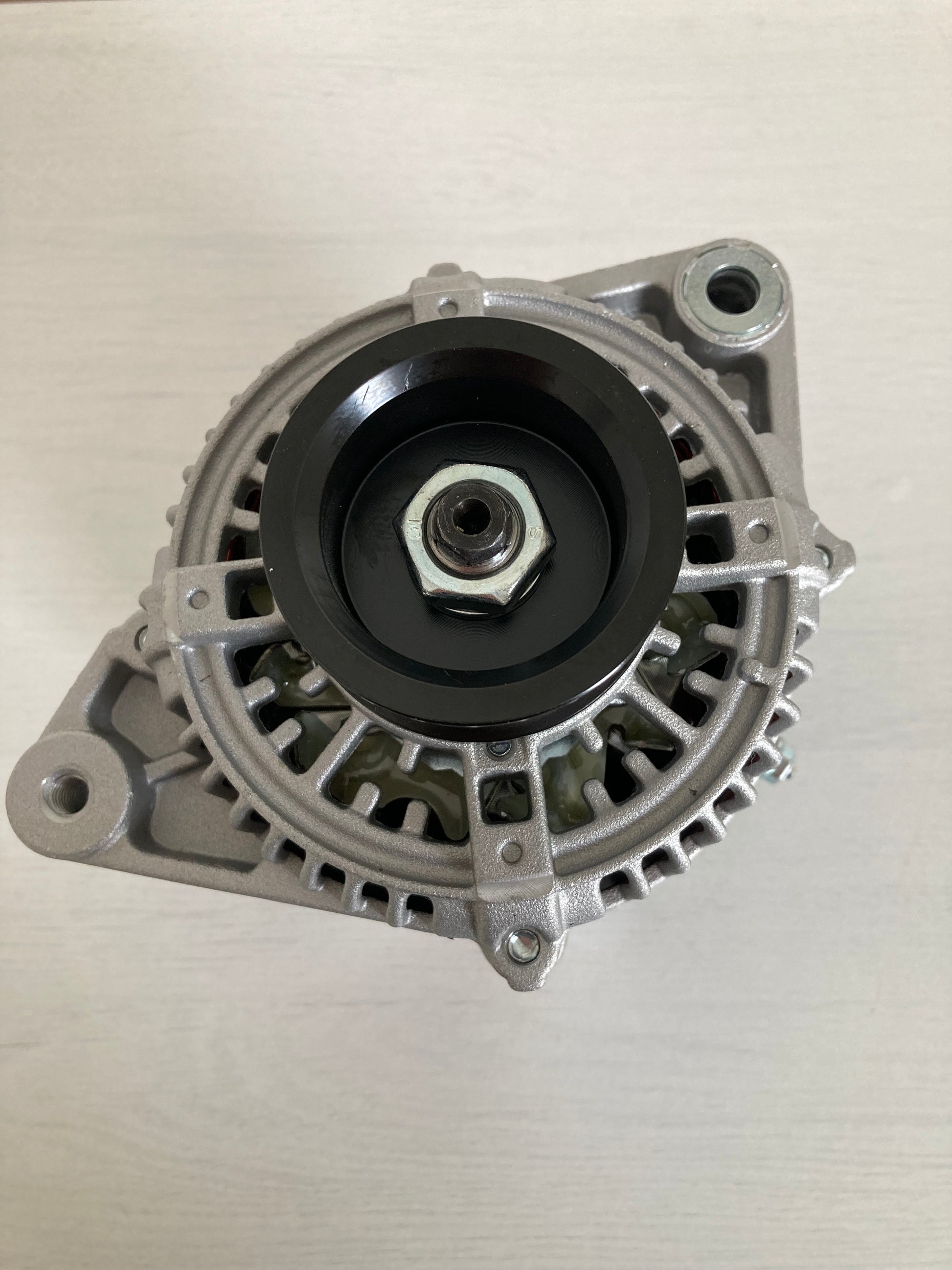

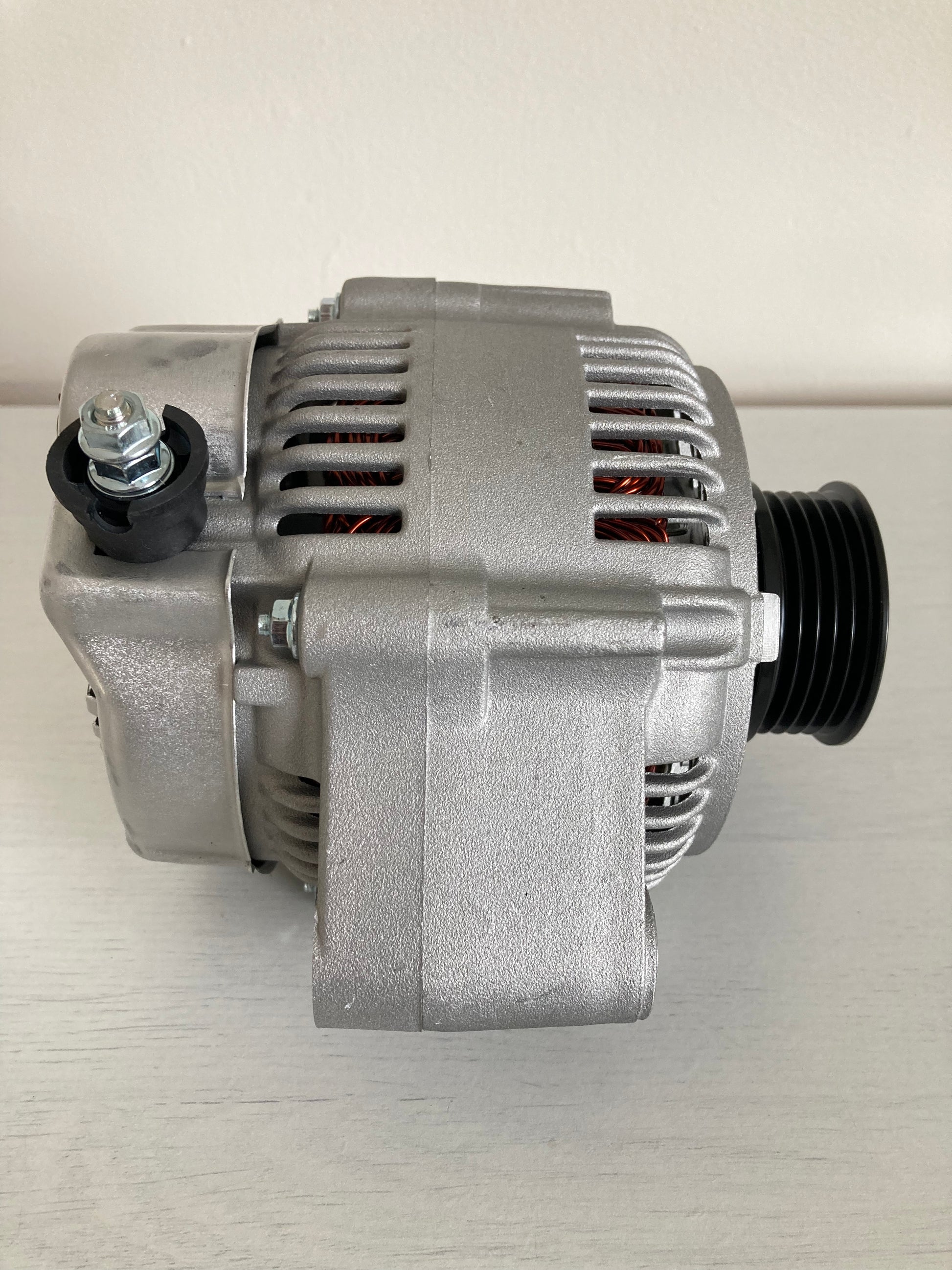

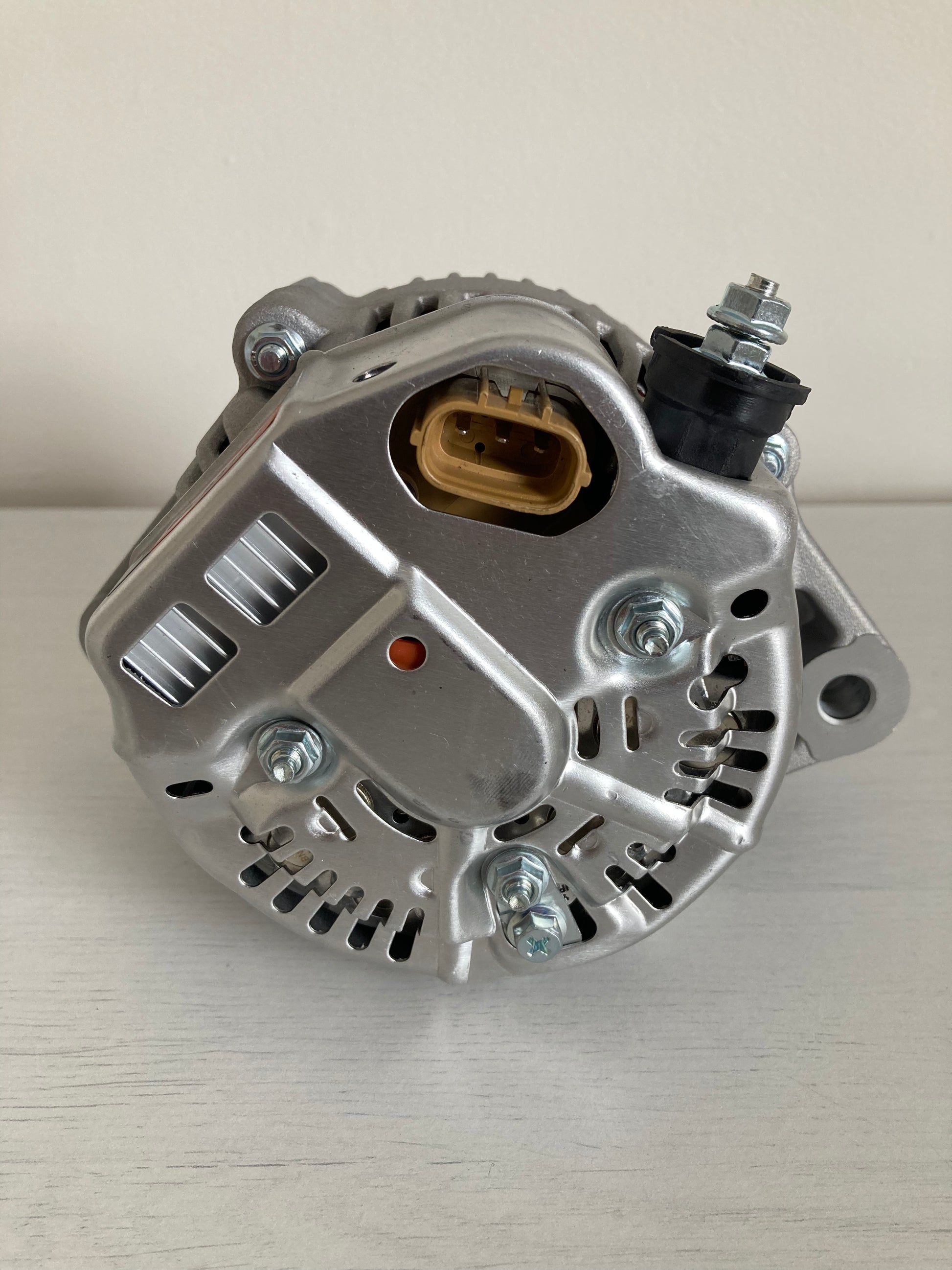

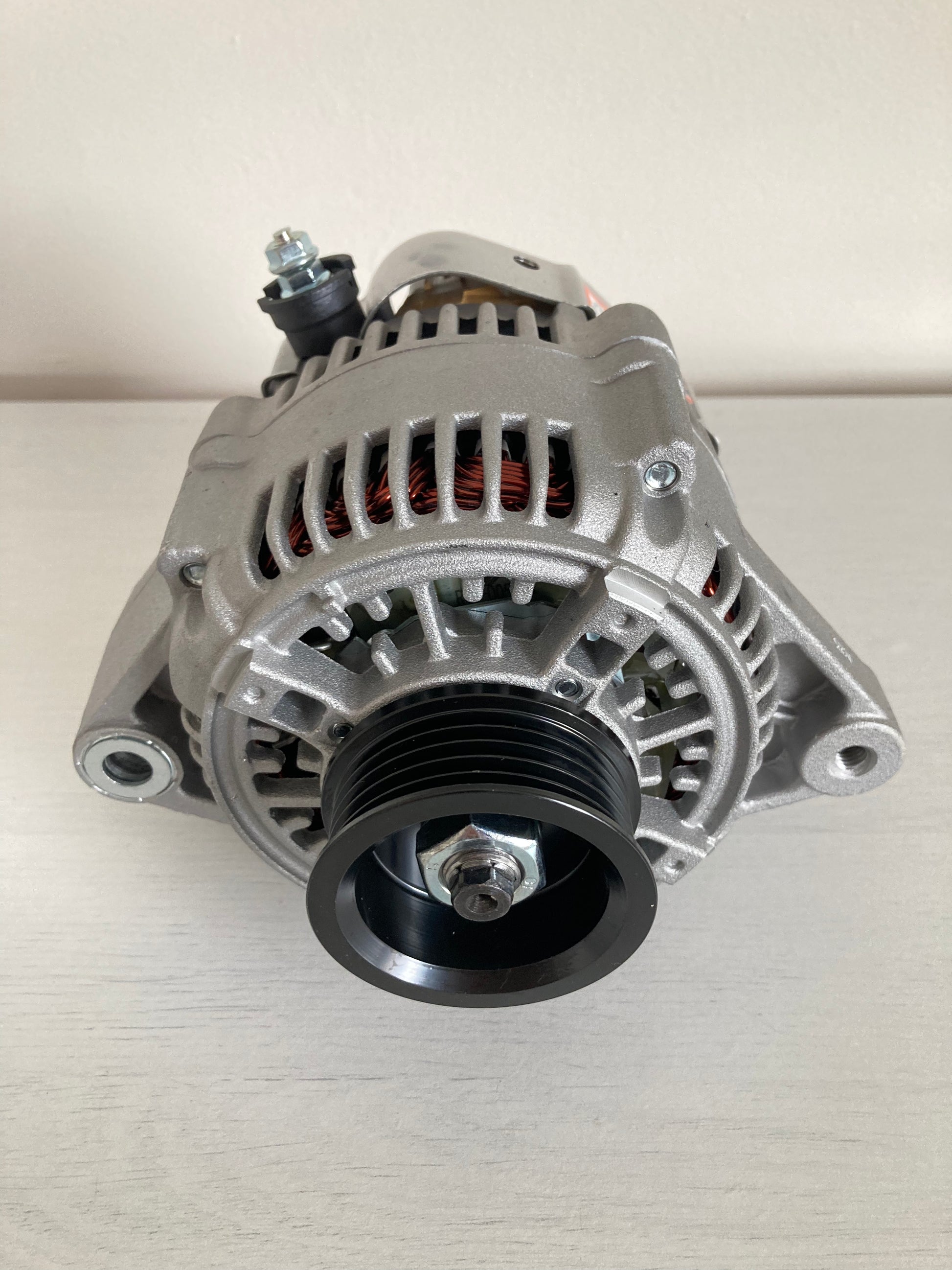

High output 12V 80amp alternator to suit the 4AGE 20V Engine. Suits both Blacktop and Silvertop. Plug and play no adaptor plug required.
| Specifications | |
| Voltage | 12V |
| Amperage | 80A |
| Mount Leg ID | 58mm |
| C-C Mounts | 160mm |
| Hole ID Top | M8 |
| Hole ID Bottom | 10mm |
| Shaft Size | |
| Pulley Type | 5PV |
| Pulley Belt Width | |
| Pulley Grooves | 5 |
| Pulley Diameter | 62mm |
| Regulator Type | INTERNAL |
| Series | |
| Connections Plug # | EP24 |
| Terminals | B+, S, IG, L |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 6.0kg |
